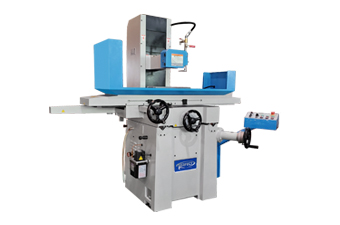

PFG-2550H

Product Description

H Series are longitudinal by hydraulic, and cross feed/vertical axes are manual.

Product Feature

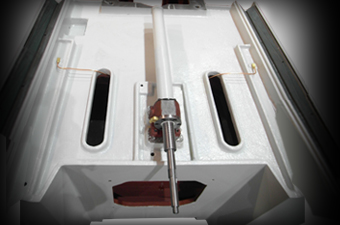

1.   Optimized Structure - The major parts of PERFECT grinders are manufactured from high quality cast iron combined with an outstanding structural design. Major parts are stress relieved to ensure maximum rigidity, stability and machining accuracy.

2.   Turcite-B on Slideways - The X and Z axes slideways on the H Series are coated with Turcite-B for stable movement and long term accuracy.

3.   Precision Spindle Design - The spindle runs in a class P4 high precision angular contact bearing, assuring run-out accuracy in 2 μm. The cartridge-type spindle is completely sealed and lubricated for long working lifetime, providing high accuracy grinding and a long service life.

Product Specification
SPECTIFICATEUNITPFG-2550H
Grinding surface of table mm 250x500
Max. distance center of spindle to table mm 500 [Option:600]
Total Max. safety table load kgs 250
Table guideway   V & FLAT WAY
Wheel dimension mm 180x13x31.75
Spindle motor HP 2
Machine net weight Kgs 1350
Packing gross weight Kgs 1550
Machine dimensions (AxBxC) mm 2340x1500x1800
