PFG-250R

Product Description
  • Surface grinders, Saddle type Optimized Structure
  • Suitable for grinding Spacer, Ring, screw nut ...etc., need Concentric circles surface or need better accuracy and quality for circle work piece.
Product Feature

Optimized Structure

.  The major parts are manufactured from high quality cast iron combined with an outstanding structural design.

 Major parts are stress relieved to ensure maximum rigidity, stability and machining accuracy.

Turcite-B Slideways

  The X, Z axes slideways are coated with Turcite-B for stable movement and long term accuracy.

Precision Spindle Design

.  The CP4 high-precision spindle with pre-stressed adjustment increases the rigidity and precision of machine during grinding.

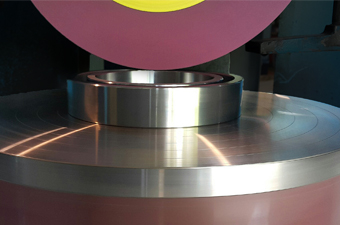

High Precision Rotary Table

.  High precision rotary base design and cross axis uses high precision ball screw transmission system to get the best precision.

Auto crossing stroke adjustment

.  Auto crossing stroke adjustment of cross feed make operating more convenience.

Semi enclosed splash shield

.  Semi enclosed splash shield make operatuin more cleaning and safety.

Auto Down Feed Control (Option)

.  Avaliable to equip with an auto down feed control system (AD5) for greatly increasing operational convenience.

Product Specification
SPECTIFICATEUNITPFG-250R
Grinding surface of table mm 250
Max. distance center of spindle to table mm 400[Option:500]
Total Max. safety table load kgs 84
Wheel dimension mm 180x13x31.75
Spindle motor HP 2
Machine net weight Kgs 1300
Packing gross weight Kgs 1500
Machine dimensions (AxBxC) mm 1500x1650x1800
