PFG-R200DT

INQUIRY NEXT
Product Description

Surface grinders, Saddle type Optimized Structure.

Suitable for grinding Spacer, Ring, screw nut ...etc., need Concentric circles surface or need better accuracy and quality for circle work piece.





Product Feature

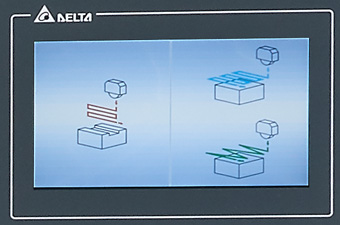

  • LCD touch screen panel (HMI Interface)(DT controller-Dedicated)
  • Auto down feed
  • Ø200mm Rotary table (with P.M. Chuck)
  • Auto. Crossing stroke adjustment by control panel switch.
  • Ball screw for cross feed
  • Quantitative lubrication system
  • Enclosed splash shield





Product Specification
SPECTIFICATEUNITPFG-R200DT
Grinding surface of table mm 200
Max. grinding surface mm 130
Max. distance center of spindle to table mm 400
[Option:500]
Total Max. safety table load kgs 61
Table guideway   V & FLAT WAY
Wheel dimension mm 180x13x31.75
Spindle motor HP 2
Machine net weight Kgs 1300
Packing gross weight Kgs 1500
Floor space (AxBxC) mm 1500x1650x1800
