PFG-2550DT

INQUIRY NEXT
Product Description

Auto cross feed, Longitudinal by sensor & solenoid valve, micro cross feed,

Continuous lubrication and Back water splash shield, auto down feed are standard



Product Feature
  • LCD touch screen pane (HMI Interface)
  • Auto down feed
  • Auto crossing stroke adjustment
  • Crisscross grinding
  • Ball screw & Micro feed for cross feed
  • Stepless Variable Hydraulic System
  • Longitudinal by Sensor & Solenoid valve
  • Quantitative lubrication system

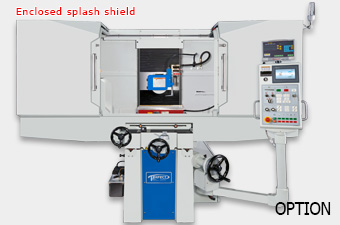

  • Back water splash shield
  • Indication lamp





Product Specification
SPECTIFICATEUNITPFG-2550DT
Grinding surface of table mm 250x500 (10"x20")
Max. grinding surface mm 250x500
Max. distance center of spindle to table mm 500 (20")
[Option:600 (24")]
Total Max. safety table load kgs 250
Table guideway   V & FLAT WAY
Wheel dimension mm 180x13x31.75
Spindle motor HP 2
Machine net weight Kgs 1300
Packing gross weight Kgs 1550
Floor space (AxBxC) mm 2355x1920x1800
