Optimized Structure
All major parts are manufactured from high tensile cast iron, tempered and stress relieved for best rigidity and stability. Structural parts are rib reinforcement for outstanding rigidity.
Precision Spindle Design
The spindle runs in a class P4 high precision angular contact bearing, assuring run-out accuracy in 2 μm. The cartridge-type spindle is completely sealed and lubricated for long working lifetime, providing high accuracy grinding and a long service life.
Turcite-B on Slideways
The X slideways is coated with Turcite-B for stable movement and long term accuracy.
Heavy Duty Linear Guide Ways on Cross feed
Slant beam construction. This provides outstanding load distribution on the entire beam surface, assuring maximum stability during heavy duly grinding. The beam surface is equipped with two heavy duty linear guide ways with great span for extra smooth movement and high rigidity.
Precision Feed on Vertical axis
The vertical axis is equipped with high precision, preload linear guideways combined with high precision ball screw transmission, assuring outstanding feed accuracy and maximum stability.
AC Servo Motor & M.P.G. Hand Wheel for Y & Z axes
Providing high accuracy and convenient operating.
Crossing Stroke Adjustment for X & Z axes
Travel setting by joystick, more convenient.
Stepless Variable Proportional Valve Hydraulic System for X axis
Allowing for feed speed adjustment according to the workpiece type for increased convenience of operation.
LCD touch screen panel (PLC controller) and Graphical HMI Interface
Operating more easier, friendly and efficiency.
Grinding Mode
Surface, Crisscross, Plunge , and Pitch (same pitch and same depth) grinding are standard.
Spindle motor inverter
Variable spindle speed adjustment for different material.

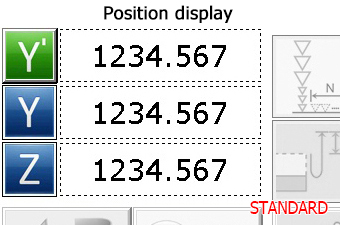

Position Display for Y & Z axes
Display the position of Y & Z axes, more convenience when operating.
NC auto parallel dressing & compensating system
The standard NC auto parallel dressing & compensating system mounted on spindle head, greatly increasing the grinding efficiency.
Enclosed Splash Shield (Option)
More safty and more cleaning.
Auto Balancing System (Option)
Providing superior grinding accuracy and finishing.
